Home / Products / Hughes

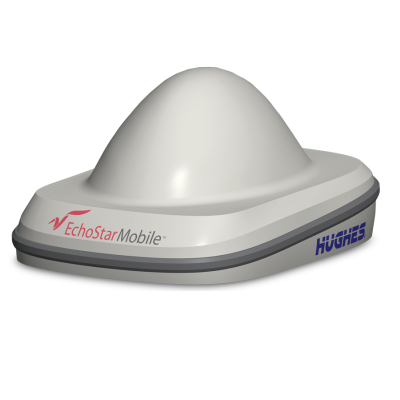

Hughes-4500-S-Band-Terminal

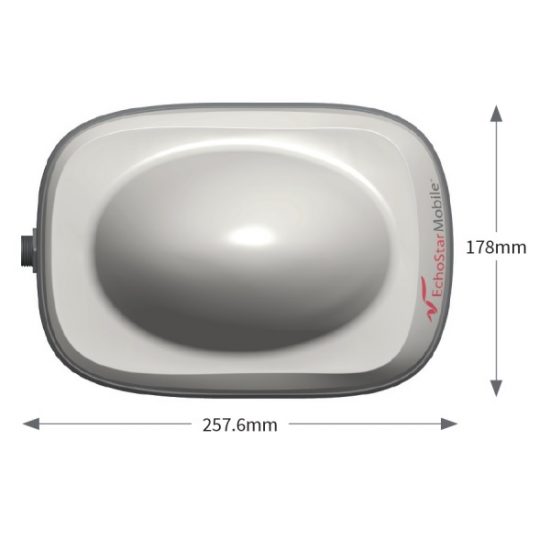

Hughes-4500-Maße-550x550

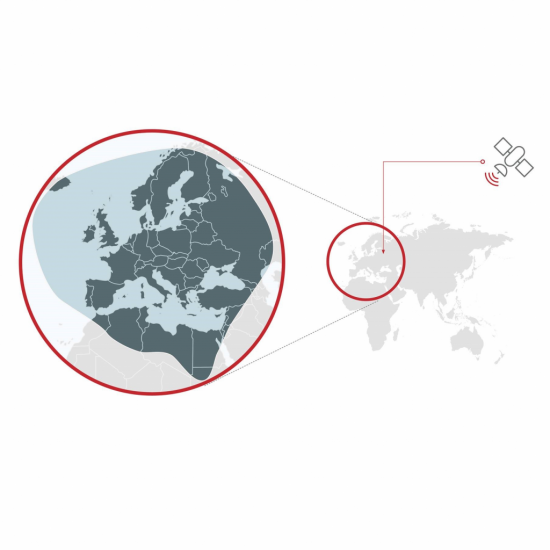

Coverage_Echostar-1024x1024-1-550x550

Hughes

4500



The Hughes 4500 terminal delivers affordable, end-to-end IP data connectivity for applications in connected vehicle, industrial, fisheries, resource extraction, environmental monitoring, and Smart-Grid monitoring among others.

The low standby power consumption of the Hughes 4500 terminal makes it possible to provide end-to-end IP connectivity to sites that are otherwise off the grid. It is suited to power-challenged locations that rely upon solar-battery arrays with sensitive power budgets.

The Hughes 4500 terminal is environmentally sealed for long-term outdoor installation or on a vehicle, fixed site, or small boat. The installation consists of a single 4500 unit that can be placed at the end of a single cable carrying Ethernet and power. The SIM card is mounted securely inside the 4500 unit.




Download Datasheet



The Hughes 4500 terminal delivers affordable, end-to-end IP data connectivity for applications in connected vehicle, industrial, fisheries, resource extraction, environmental monitoring, and Smart-Grid monitoring among others.

The low standby power consumption of the Hughes 4500 terminal makes it possible to provide end-to-end IP connectivity to sites that are otherwise off the grid. It is suited to power-challenged locations that rely upon solar-battery arrays with sensitive power budgets.

The Hughes 4500 terminal is environmentally sealed for long-term outdoor installation or on a vehicle, fixed site, or small boat. The installation consists of a single 4500 unit that can be placed at the end of a single cable carrying Ethernet and power. The SIM card is mounted securely inside the 4500 unit.

Hughes-4500-S-Band-Terminal



  • S-band satellite operation
  • Low power consumption
  • Omni directional antenna
  • Supports remote terminal management
  • Built-in GNSS receiver
  • Simple installation: no PC required
  • Terminal can be vehicle-, pole-, or mag-mounted
  • Dimensions
    25,8 x 17,8 x 11,5 cm (L/W/H)
  • Weight
    1.2kg
  • Interfaces
    USB, Ethernet, (Optional: Serial and GPIO)
  • Operating temperature
    -25°C to + 65°C
  • Storage temperature
    -40°C to + 80°C
  • Humidity
    95% at + 40°C
  • Protection class
    IP-67
  • Receive
    2185 – 2200 MHz
  • Send
    1995 – 2010 MHz
  • Input Voltage
    12V (vehicle)
  • Terminal Mobility Speed
    Up to 120 km/h
  • Wind loading: Survival
    200 km/h
  • GNSS Support
    GPS, GLONASS
  • Firmware Upgrades
    Over the air or local
  • Package Content
    Hughes 4500 terminal
    Quick Start Guide
