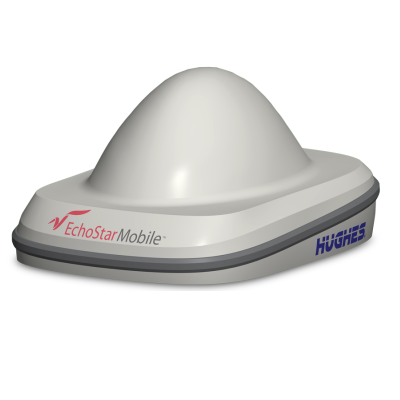

4510
The Hughes 4510 terminal delivers affordable, end-to-end IP data connectivity for industrial IOT applications in connected vehicle, industrial, fisheries, resource extraction, environmental monitoring, and Smart-Grid monitoring, among others. It dynamically routes IP traffic between the terrestrial and satellite networks based upon path availability, allowing for ubiquitous service for critical applications.
The low standby power consumption of the Hughes 4510 terminal makes it possible to provide end-to-end IP connectivity to sites that are otherwise off the grid. It is suited to power-challenged locations that rely upon solar-battery arrays with sensitive power budgets.
The Hughes 4510 terminal is environmentally sealed for long-term outdoor installation or on a vehicle, fixed site, or boat. The installation consists of a single 4510 unit that can be placed at the end of a single cable carrying Ethernet and power. The SIM card is mounted securely under the SIM cover.
The Hughes 4510 terminal delivers affordable, end-to-end IP data connectivity for industrial IOT applications in connected vehicle, industrial, fisheries, resource extraction, environmental monitoring, and Smart-Grid monitoring, among others. It dynamically routes IP traffic between the terrestrial and satellite networks based upon path availability, allowing for ubiquitous service for critical applications.
The low standby power consumption of the Hughes 4510 terminal makes it possible to provide end-to-end IP connectivity to sites that are otherwise off the grid. It is suited to power-challenged locations that rely upon solar-battery arrays with sensitive power budgets.
The Hughes 4510 terminal is environmentally sealed for long-term outdoor installation or on a vehicle, fixed site, or boat. The installation consists of a single 4510 unit that can be placed at the end of a single cable carrying Ethernet and power. The SIM card is mounted securely under the SIM cover.
- S-band satellite operation with data rates up to 200kbps upload / 150kbps download
- Low power consumption
- Omni directional antenna
- Global LTE CAT-1 enabled via eSIM or a replaceable 2FF SIM
- Integrated connection watchdog to ensure “always-on” network connectivit
- Supports remote terminal management
- Built-in GNSS receiver
- Simple installation: no PC required

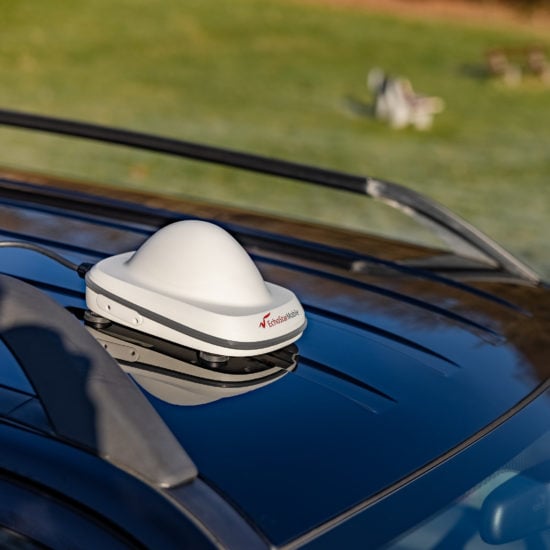

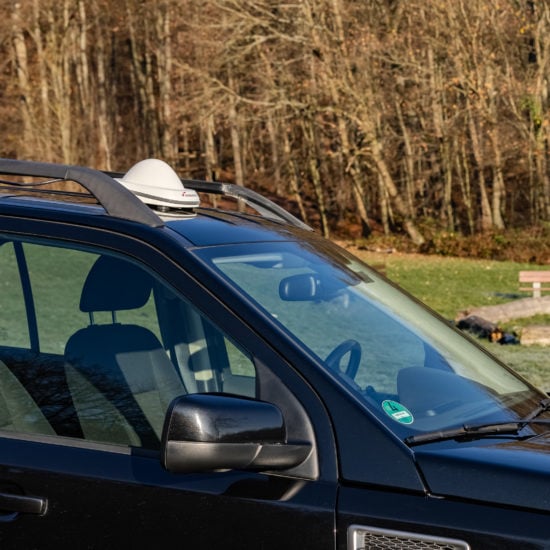

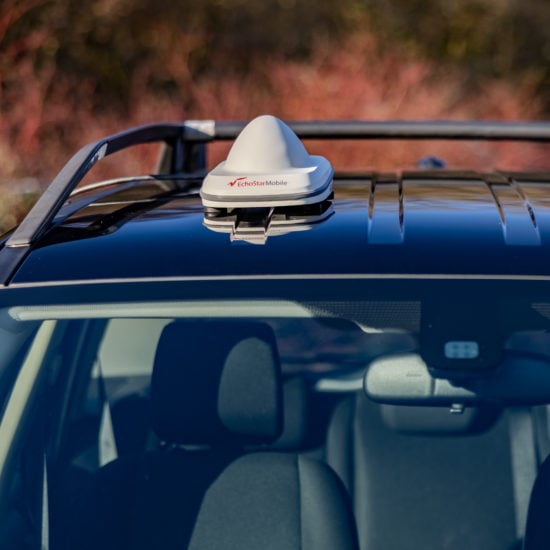

- Terminal can be vehicle-, pole-, or mag-mounted
-

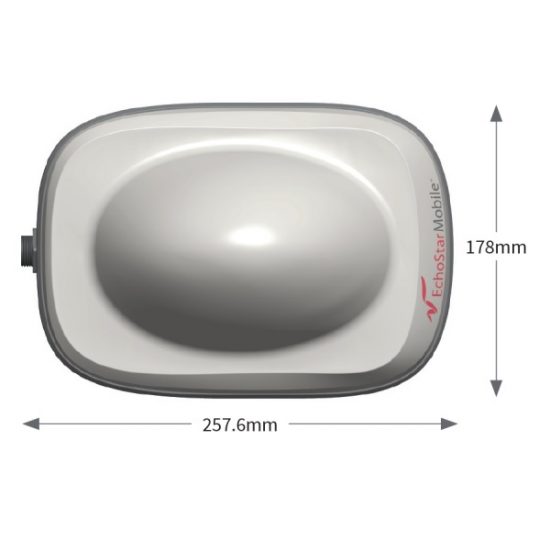

Dimensions24,8 x 17,8 x 11,5 cm (L/W/H)
-
Weight1.5kg
-
InterfacesUSB, Ethernet, (Optional: Serial and GPIO)
-
LTE bands1,2,3,4,5,7,8,12,18,19,20,28
-
Operating temperature-25°C to + 65°C
-
Storage temperature-40°C to + 80°C
-
Humidity95% at + 40°C
-
Protection classIP-67
-
Receive2185 – 2200 MHz
-
Send1995 – 2010 MHz
-
Input Voltage12V (vehicle)
-
Wind loading200 km/h
-
GNSS SupportGPS
-
Firmware UpgradesOver the air or local
-
Package ContentHughes 4510 terminal
Quick Start Guide
