The Hughes 4200 Portable Data Terminal (Hughes 4200 PDT) provides VoIP and IP data services to EchoStar Mobile™ users in all EU Member States, as well as Norway and Switzerland.
The Hughes 4200 Portable Data Terminal (Hughes 4200 PDT) provides VoIP and IP data services to EchoStar Mobile™ users in all EU Member States, as well as Norway and Switzerland.
Fully approved to operate on the EchoStar Mobile™ Mobile Satellite Services (MSS) platform and the EchoStar XXI S-band satellite, the Hughes 4200 PDT provides powerful connectivity for users, including those in remote locations.

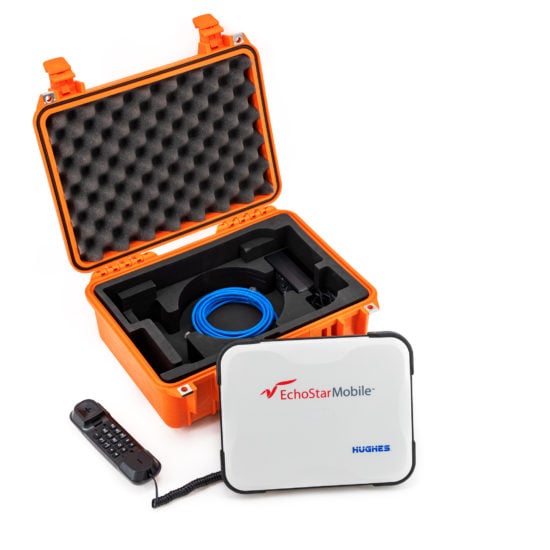

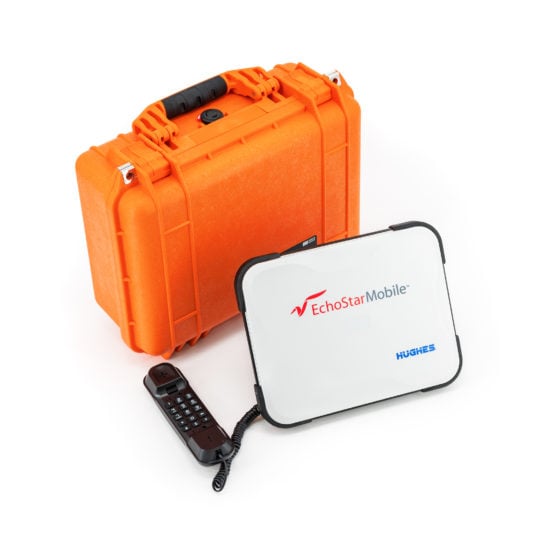

With the PeliCase transport case, you always have the Hughes 4200 PDT including accessories at hand. In addition, the transport case offers excellent protection for the Hughes 4200 PDT. With IP-67 the case is waterproof and with a buoyancy of 13.6 kg the case incl. terminal will not sink but float on the water surface. The break resistance of the case and the CNC milled hard foam inside also protect the Hughes 4200 PDT from shocks.
The Hughes 4200 PDT provides reliable and efficient communications for all users in all locations using a variety of IP data applications on their PC or smartphone. The Hughes 4200 PDT has an integrated Wi-Fi access point to support wireless data and voice. In addition, smartphones with VoIP clients can use the efficient satellite telephony service for voice calls.
Overview
Waterproof, shatterproof and dustproof
Comfortable rubberized handles
Easy-opening two-stage latches
Stainless steel fittings and padlock protection
Automatic pressure equalization valve - equalizes pressure inside case, prevents water from entering
O-ring seal
Available Services
Simultaneous use of Ethernet and Wi-Fi for IP data
Supports WPA and WPA-2 encryption over Wi-Fi
WebUI is accessible via PCs and smartphones
Multi-user capable
High capacity battery
Built-in compass
Supports NAT, NAPT and DHCP
Bandwidth-efficient Voice over IP (VoIP)
Voice over IP: – Supports one POTS port – Supports SIP clients over Wi-Fi and LAN
Case
Dimensions: 37.4 x 26 x 15.4cm (L/W/H) Weight: 5.9Kg (incl. terminal & accessories) Certifications: IP67 / MIL C-4150J / STANAG 4280 / Def Stan 81-41 Operating temperature: -40°C to + 99°C Floatability: 13.6Kg
HNS PDT 4200 Satellite Terminal
Weight: 2.0kg Interfaces: USB, Ethernet, (Optinoal: Serial and GPIO) Operating temperature: -25°C to +55°C (without battery) Operating temperature: -5°C to +40°C (with battery) Storage temperature: -40°C to +80°C (without battery) Storage temperature: -40°C to +60°C (with battery) Humidity: 95% at + 40°C Protection class: IP-54 Power (Max.): 57W
Package Content
PeliCase 1450 incl. CNC milled hard foam Satellite terminal HNS PDT 4200 AC/DC adapter for EU and UK Rechargeable Li-Ion battery 5m Ethernet cable
