Fixed Enclosure for Starlink Mini
Fast internet, anytime and anywhere - with the Starlink Mini you can experience state-of-the-art satellite communication without compromise.
- Easy installation
- All-round protection
- Integrated lighting protection
- Reliable power supply
Key Features
A ready-to-install kit for a fast, reliable internet connection – anytime, anywhere. With the Starlink Mini, you get cutting-edge satellite communication without compromise. But we take it a step further: our Starlink Mini comes in robust protective housing, ensuring a secure and stable connection even in extreme conditions.
The Starlink Mini Kit offers a cutting-edge, cost-effective solution for fixed installations – perfect for those who need reliable backup and critical communications.
Ideal applications
Governments, public protection and security, remote healthcare and emergency facilities, utility companies, forestry services, and energy.
What’s in the kit?

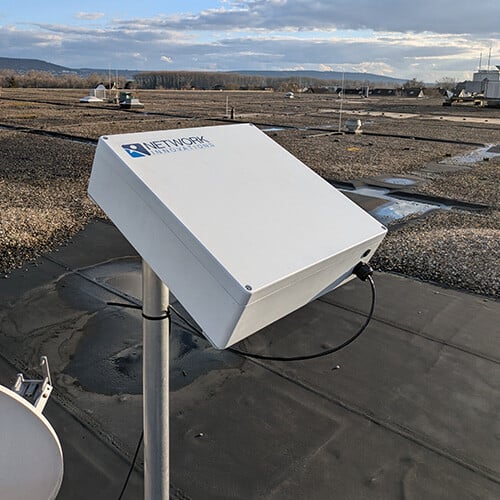

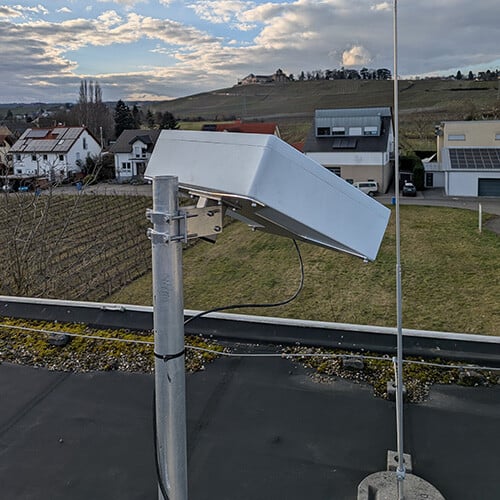

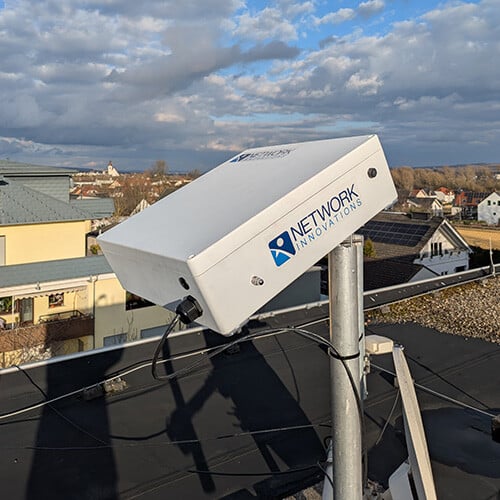

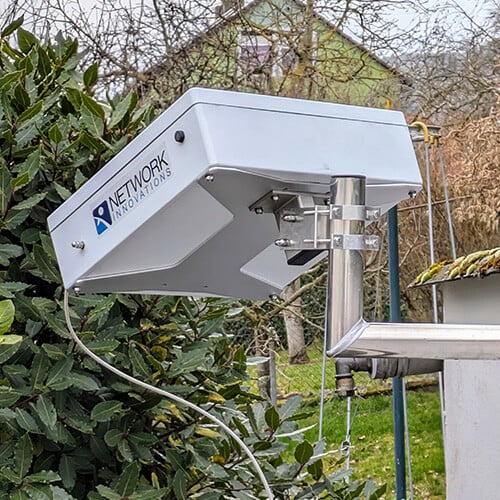

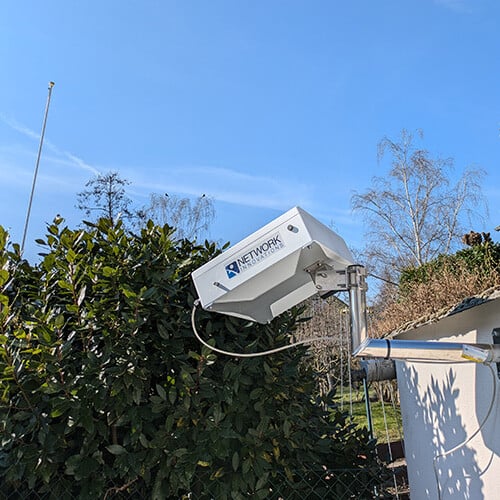

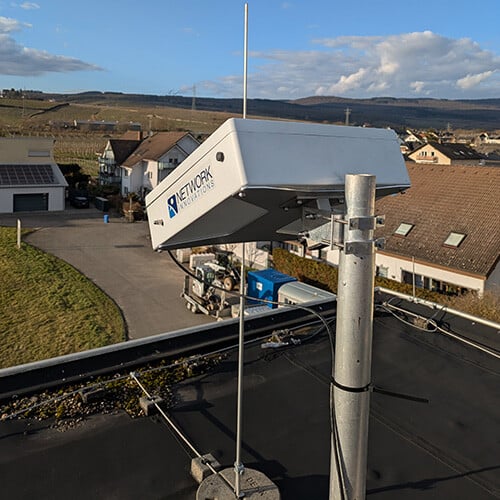

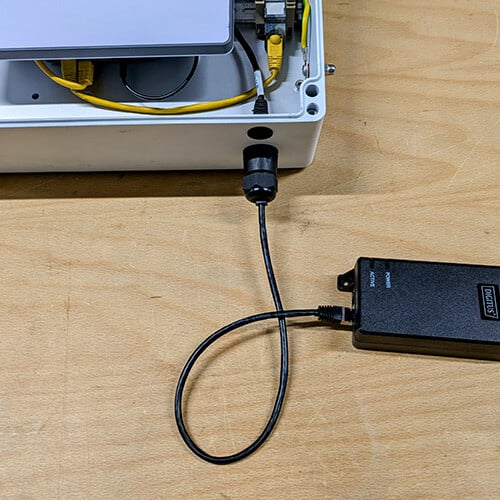

- Starlink Mini Enclosure with pole mount
- Gigabit Ethernet PoE Ultra Injector,
802.3af/at, 60 W - a 120/240V AC/DC 50/60 Hz industrial PoE injector (60W) to connect the unit to an external AC power source
Specifications
-
Weight:9.8 kg / 21.60 lbs
-
Dimensions enclosure:40.0 x 40.5 x 16.0 cm
15.8 x 15.9 x 6.3 inches
Environmental Conditions
-
Dust and water:IP65
-
Temperature:-30°C to +50°C operating
-22°F to +1°F operating
Interfaces
-
1 x M25 cable gland (Ethernet)

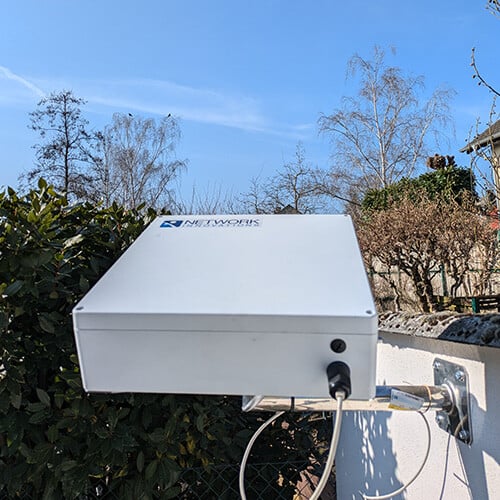

Mounting
-
Max. diameter:2.5 - 6.0 cm
1.0 - 2.3 inches
Power
-
Input:Input voltage 110 - 240V AC PoE ultra
Injector -
Consumption:Power supply: max. 60W
System Features
-

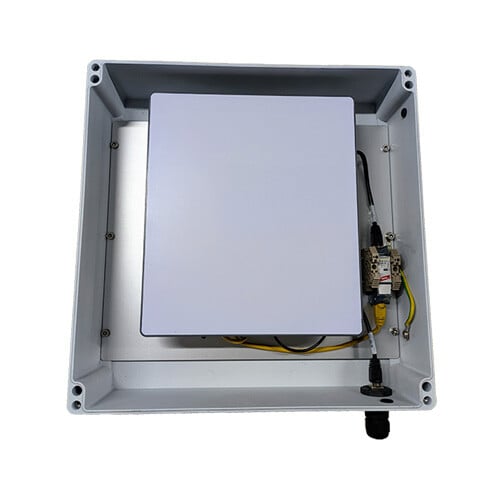

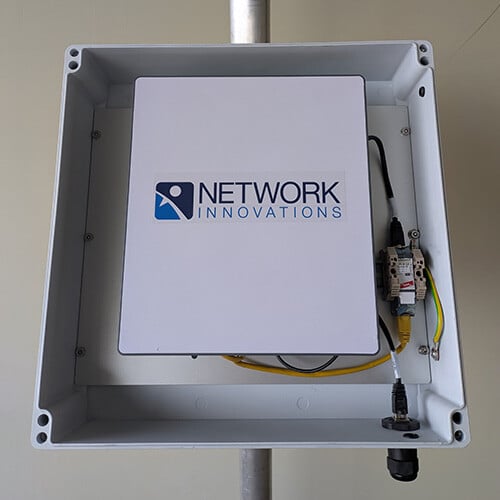

External AC power connector :Build in Gigabit Ethernet PoE Splitter, Industrial, 60W Input
Build in Universal arrester for Industrial Ethernet, Power over Ethernet (IEEE 802.3 compliant up to PoE++ / 4PPoE)
Cable length up to 100 Meter via Ethernet CAD 6 Cable (not included in the delivery)
External connector for grounding
