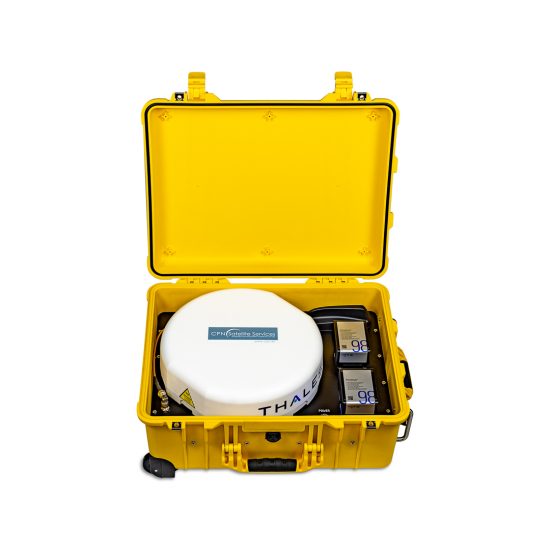

CPN-EVERY-MissionLINK-open-4119-2-550x550

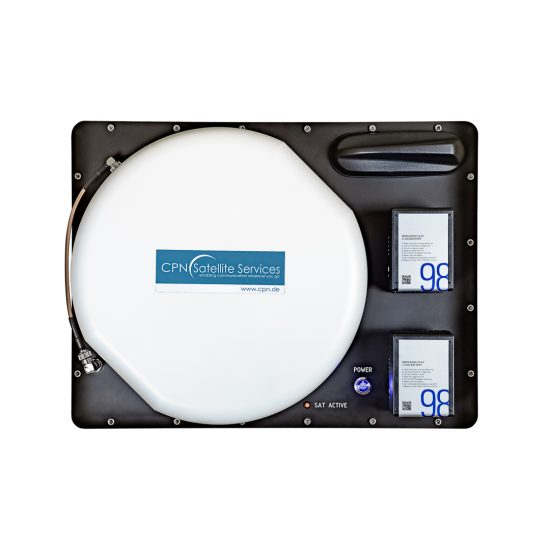

CPN-EVERY-MissionLINK-top-view-4118-HDR-2-550x550

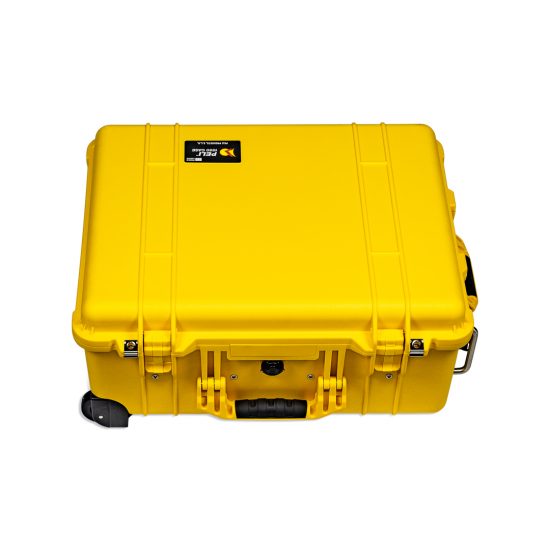

CPN-EVERY-MissionLINK-closed-4120-2-550x550

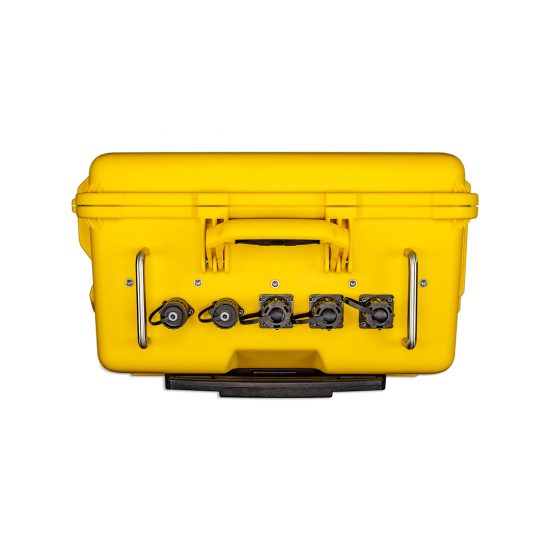

CPN-EVERY-MissionLINK-connections-closed-4113-2-550x550

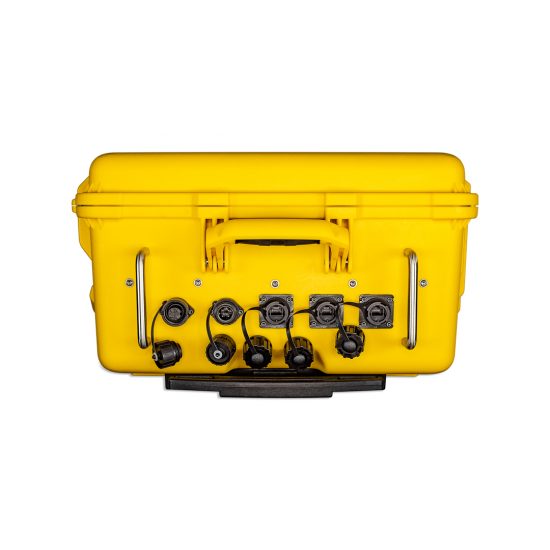

CPN-EVERY-MissionLINK-connections-open-4112-2-550x550

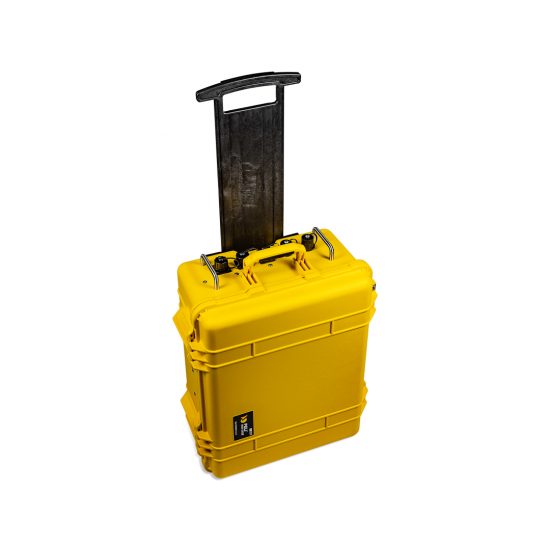

CPN-EVERY-MissionLINK-standing-4115-2-550x550

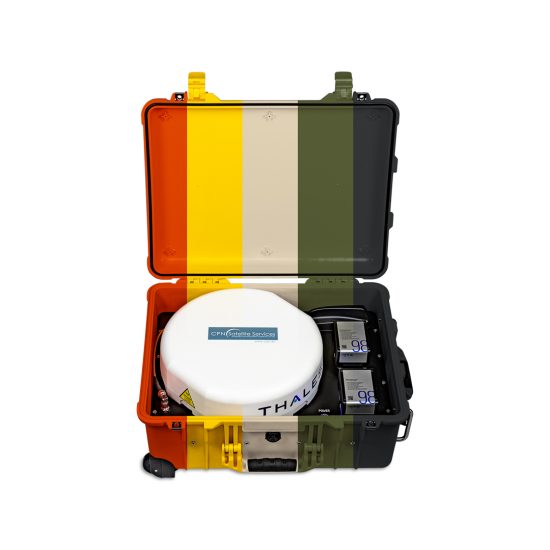

CPN-EVERY-MissionLINK-open-4119_color_scheme-2-550x550

Network Innovations

EVERY MissionLINK 700



The CPN EVERY MissionLINK 700 Dual Mode Peli Case Solution using the new Iridium Certus 700 service and CPN Smart SIM ́s gives your critical operation global communications coverage regardless of the landscape, the weather conditions and the availability of power.

The CPN EVERY MissionLINK 700, is a Dual Mode (LTE and Satellite) Peli Case Solution, fully operating and IP-54 protected when the lid is closed.

The CPN EVERY MissionLINK 700 Dual Mode Peli Case Solution offers wireless LTE Connectivity and has an automatic failover to the Iridium Certus Service, when the LTE connection is lost or not available.

It is always looking for the best wireless connection available (LTE and Satellite) for essential communications; EVERY-where on this planet.




Download Datasheet



The CPN EVERY MissionLINK 700 Dual Mode Peli Case Solution using the new Iridium Certus 700 service and CPN Smart SIM ́s gives your critical operation global communications coverage regardless of the landscape, the weather conditions and the availability of power.

The CPN EVERY MissionLINK 700, is a Dual Mode (LTE and Satellite) Peli Case Solution, fully operating and IP-54 protected when the lid is closed.

The CPN EVERY MissionLINK 700 Dual Mode Peli Case Solution offers wireless LTE Connectivity and has an automatic failover to the Iridium Certus Service, when the LTE connection is lost or not available.

It is always looking for the best wireless connection available (LTE and Satellite) for essential communications; EVERY-where on this planet.

CPN-EVERY-MissionLINK-open-4119-2-550x550



The CPN EVERY MissionLINK 700 Dual Mode Peli Case Solution delivers via the Iridium Certus service at least:

  • IP data sessions up to 700 kbps (down) / 352 kbps (up)
  • Streaming up to 256 kbps
  • 3 high quality voice lines
  • Location tracking

Higher data rates (Up to 150 Mbps) are possible, dependent of the LTE Service, the CPN EVERY MissionLINK 700 Dual Mode Peli Case Solution system
can be connected too, when LTE coverage is available at the location the System is operating.

Some technical benefits of the CPN EVERY MissionLINK 700 Dual Mode Peli Case Solution:

Sierra Wireless LTE Connectivity with automatic failover to the Iridium Certus Service, if the LTE connection is lost or not available.

Global SIM ́s, working with 600 GSM-operators in 120 countries, so that no change of the SIM card is necessary if you are changing location or country.
The SIM card always selects the GSM network with the best connection, regardless of where you are; ideal for worldwide deployments.

Integrated 4 in 1 Antenna has GSM, Diversity, WiFi, and GNSS.

Multiple power options:

  • External power, 12V DC and 90 to 264V AC
  • Detachable batteries (2 x 98 Wh which can be carried in commercial airplanes)
  • Hot-swap function, Swaps the batteries without interruption for endless off-grid operation
  • Battery Protect (disconnects the battery before it has insufficient power left to crank the engine, using a cigarette
    lighter cable)

Explanation carrying batteries in Airplanes:

98 Wh batteries detached from the system are allowed to be carried in the hand luggage in commercial planes. When
the batteries are removed from the system and stored in the hand luggage, you can send the Peli Case as normal
luggage.

  • Weight
    20.0 kg
  • Dimensions
    61.4 cm x 46.5 cm x 30.7 cm
  • Dust and Water
    IP-54 protection class
  • Temperature
    -30°C to +55°C operating
    -22°F to +131°F operating
  • Power - External Power Supply
    Input Voltage: 90 – 264V AC
    Output Voltage: 16,8V DC (84W)
  • Power - Vehicle
    Input Voltage: 12V DC
  • Power - Battery
    2 x Detachable Batteries (98Wh)
  • Interfaces
    Dual Band 802.11ac Wi-Fi hot-spot
    2 x External Ethernet port ́s (RJ-45)
    1 x External phone port (RJ-14)
  • Package Content
    CPN EVERY 323 Peli Case
    Thales MissionLINK (Terminal & Antenna)
    External Power Supply (incl. Travel Case)
    3m Vehicle Cable
    3m Ethernet Cable
    2 x 98 Wh Batteries (incl. Travel Case)
    Quick Start Guide
